Description

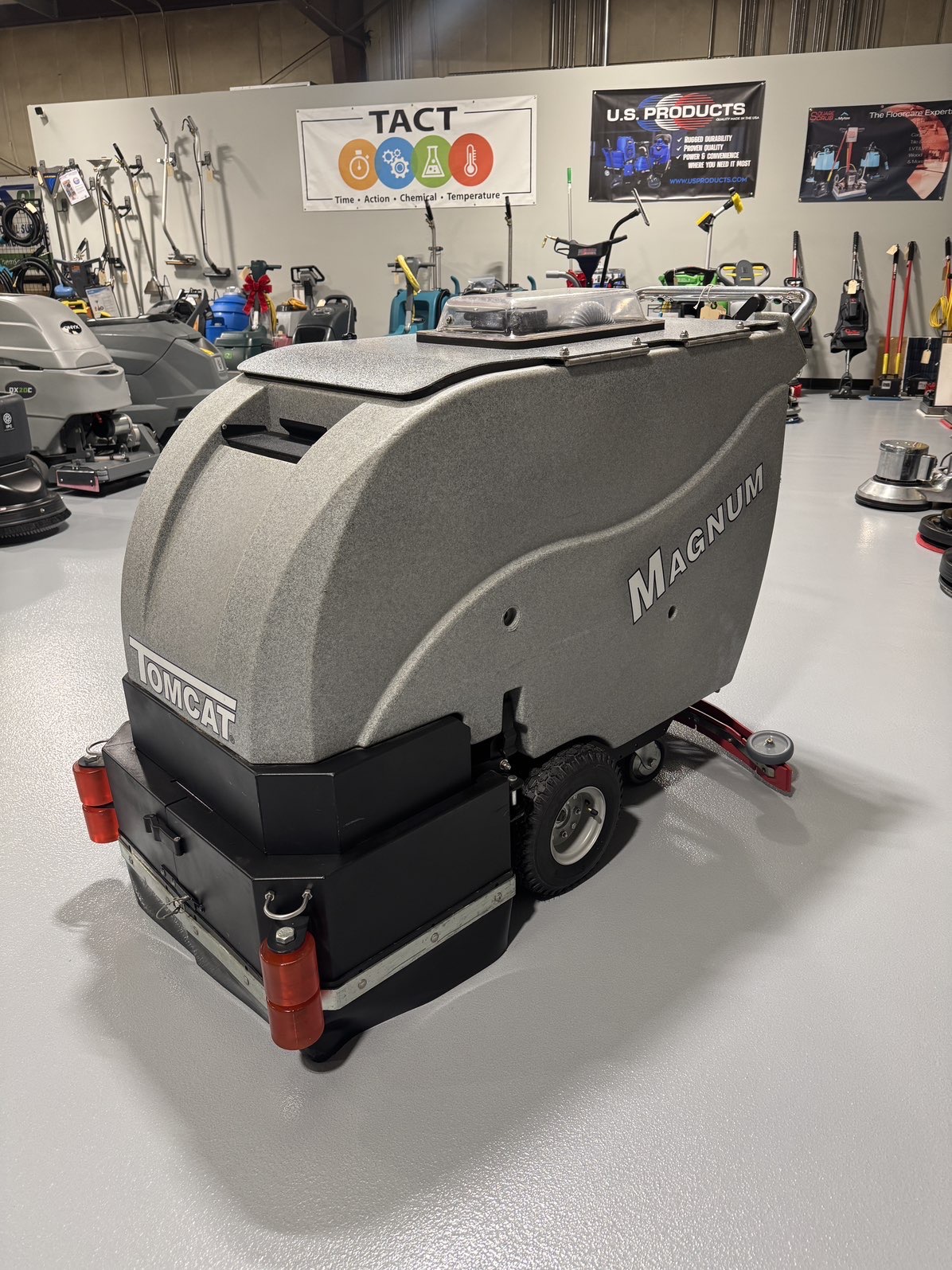

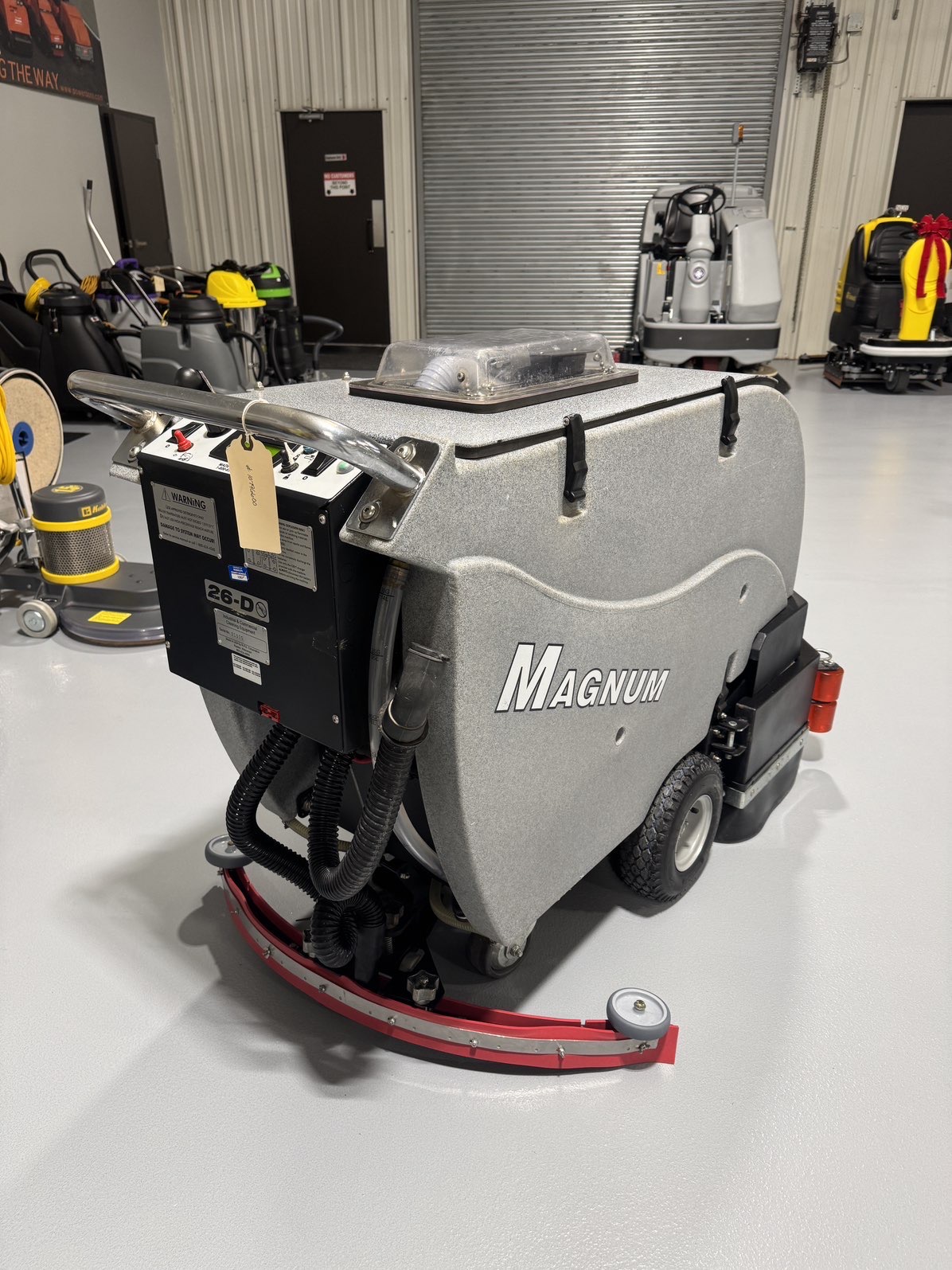

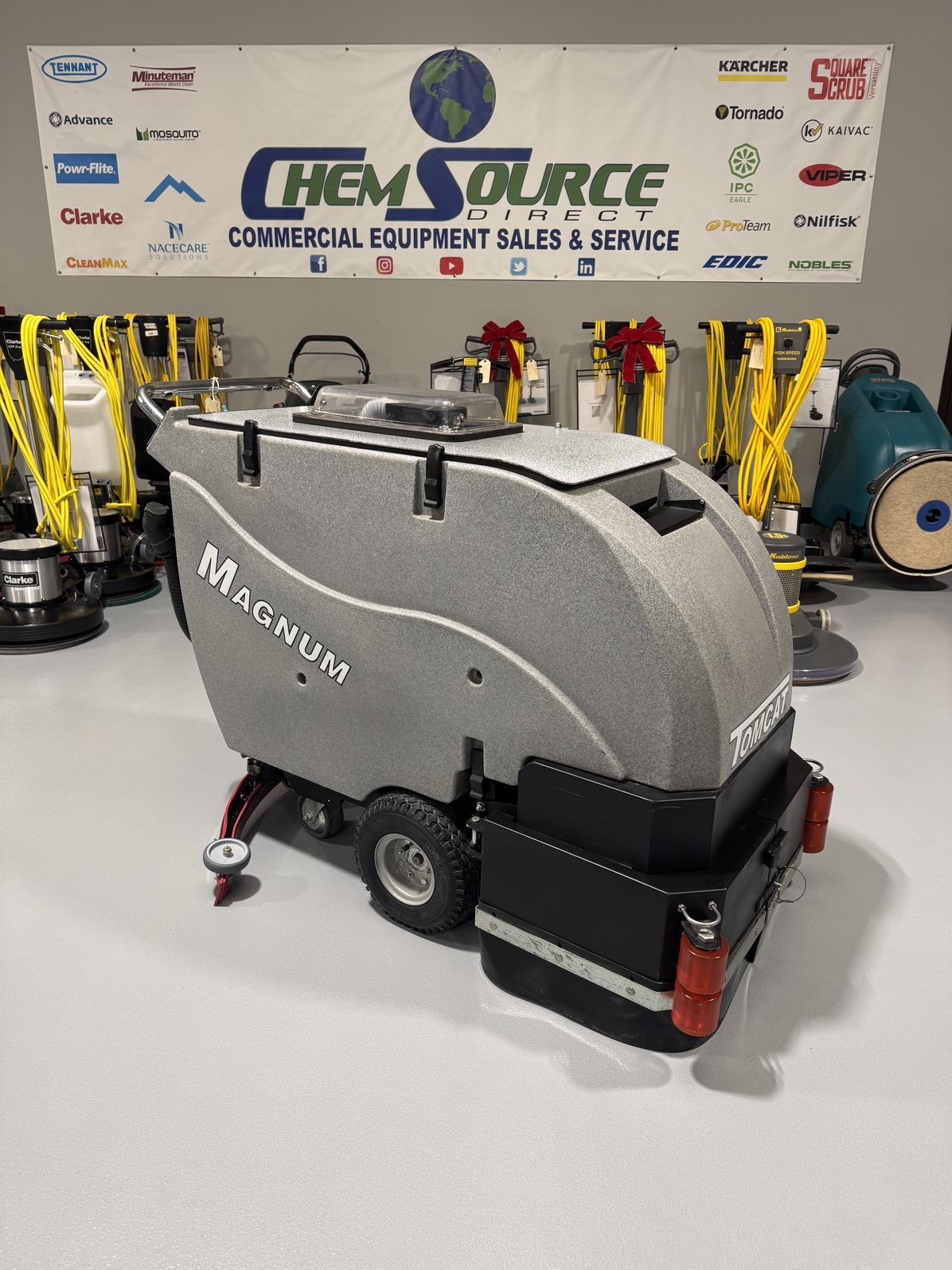

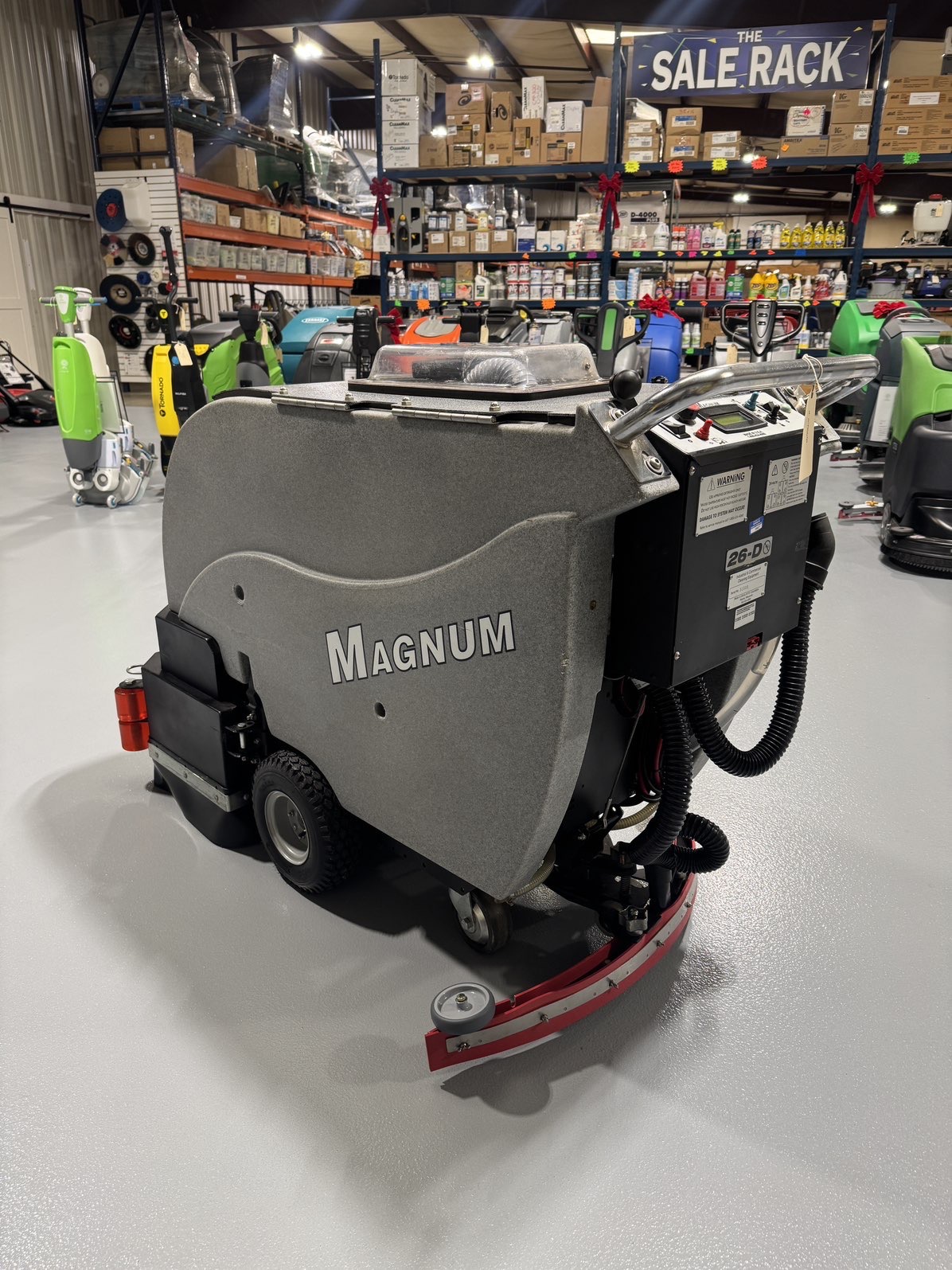

The Tomcat Magnum 26D Walk-Behind Scrubber cleans large floors fast and with less effort. It scrubs, recovers, and dries in one smooth pass. As a result, your team finishes jobs sooner and with better results.

It uses a 26-inch scrub deck with two strong disk brushes. Meanwhile, the scrub pressure adjusts with simple controls. Therefore, you can match the cleaning power to the soil level. In addition, the 30-gallon solution tank keeps you cleaning longer.

Next, the 30-gallon recovery tank captures dirty water for cleaner, safer floors. Also, the 3-stage vacuum pulls water fast and helps floors dry quickly. Because it leaves less moisture behind, it helps reduce slips and rework.

The Magnum 26D drives with smooth, variable speed control. However, it also slows automatically while scrubbing for better control. Moreover, the durable transaxle helps the machine handle daily use.

Finally, the 24-volt battery system delivers solid run time and steady power. Plus, the onboard charger makes recharging simple. As a result, your crew stays ready for the next shift.

Key Features

• 26-inch scrub path with two 13-inch disk brushes

• Adjustable scrub pressure with easy control settings

• 30-gallon solution tank for longer cleaning cycles

• 30-gallon recovery tank for fewer dump stops

• 3-stage vacuum for fast water pickup and quick drying

• Curved squeegee design for strong, consistent water control

• Smooth, variable drive speed with auto scrub speed adjustment

• 24-volt battery system with convenient onboard charging

• Tip-back recovery tank access for easier daily cleaning and service

The Tomcat Magnum 26D delivers strong cleaning, simple operation, and reliable results for busy facilities.

Specifications:

• Scrub path: 26 in.
• Brush system: (2) disk brushes, 13 in. each
• Brush speed: 265 RPM
• Brush motors: (2) 0.75 HP permanent-magnet DC, 265 RPM

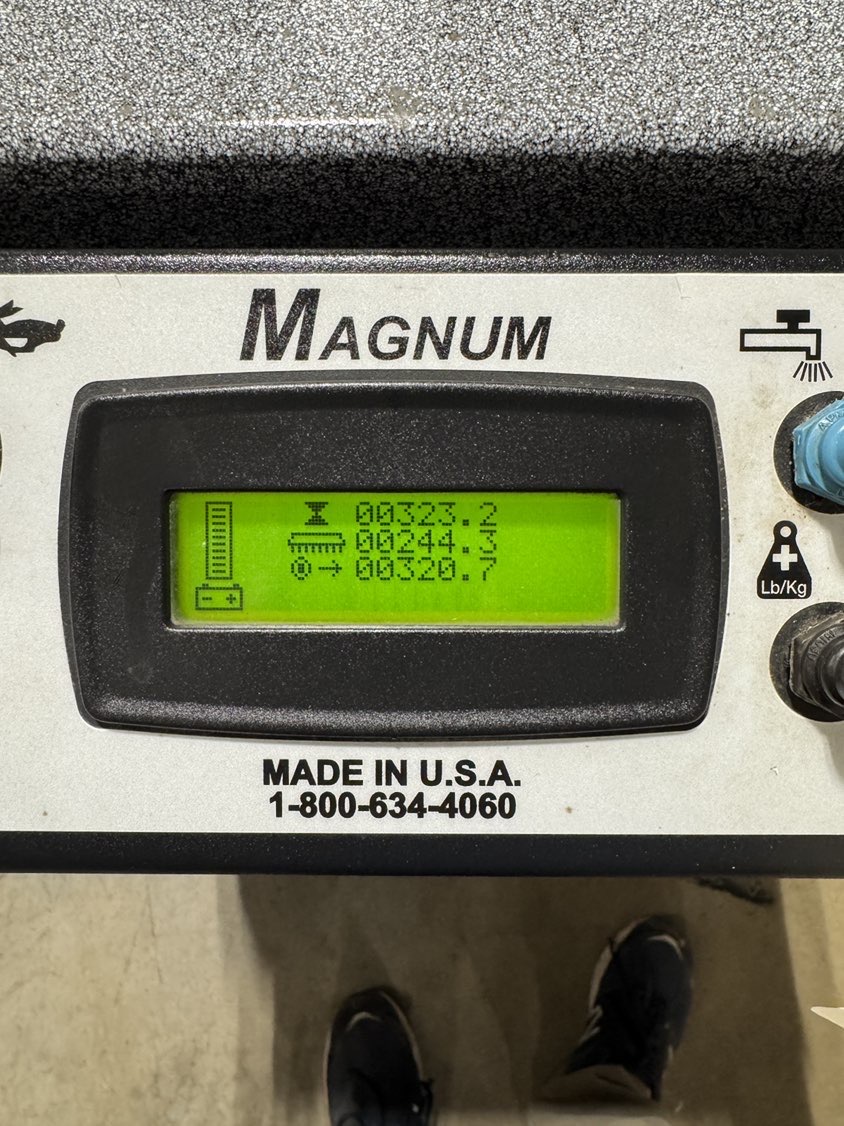

• Scrub pressure control: Automatic, 5 pressure settings, LCD readout
• Deck lift: Electric actuator (min 500 lb capacity)
• Solution tank capacity: 30 gallons
• Recovery tank capacity: 30 gallons
• Recovery tank features: Tip-back maintenance access + “Drain Saver” debris basket
• Vacuum motor: 3-stage, 650 watts
• Squeegee type: Curved, breakaway, rear blade with 4 usable edges, protected by non-marking side wheels
• Squeegee width: 32 in. minimum
• Drive type: All-gear transaxle, two-wheel drive, infinitely variable speed (PWMC motor control)
• Traction motor: 450 watts minimum
• Transport speed: Up to 4 mph; automatically adjusts to 3 mph while scrubbing
• System voltage: 24 VDC
• Batteries: (4) Trojan, 245 Ah minimum (optional upgrade: 325 Ah)
• Charger: Shelf-mounted automatic charger, 110V / 60 Hz, 25 amps minimum output
• Body dimensions (L × W × H): 56″ × 24″ × 43″
• Weight (without batteries): 498 lb
• Weight (with 325 Ah batteries): 875 lb
• New items with this unit include: batteries, sight tube, tank cover gasket, lid gasket, lanyards, drive wheels, casters, squeegee blades, front curtains, and latches.
